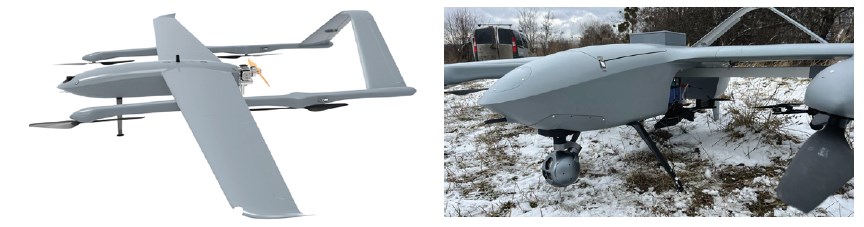

DEFIANT HUNTER-3 & 3B
The Defiant H3 and H3B are hybrid UAVs with vertical takeoff and landing in fully automatic autopilot mode with a 12 hp gasoline aircraft engine. It can be used for reconnaissance (H3) with a range of up to 800 km.
In contrast, the H3B is optimized for precision strike missions, carrying three FPV kamikaze drones to engage designated targets at a distance of up to 350 km. Both variants work well in conjunction with artillery systems, detecting and transmitting precise target coordinates to the operator at a distance of up to 10 km.
Their military communication and navigation systems, equipped with an 8-channel CRPA antenna, provide reliable resistance to aggressive radio interference, which has demonstrated its effectiveness in the war in Ukraine. The presence of inertial navigation allows missions to be carried out in the complete absence of satellite navigation.

CONTROL DISTANCE UP TO 80 KM

MAXIMUM FLIGHT DISTANCE UP TO 800 KM (350 KM WITH 3 PCS FPV).

INVISIBLE TO RADAR. IT IS NOT AFRAID OF AGGRESSIVE OBSTACLES.


TECHNICAL SPECIFICATIONS DEFIANT HUNTER-3 & 3B
| Maximum take-off weight H3 (H3B) | 50 kg (65 kg) |
| Maximum payload | up to 15kg |
| Wingspan | 4870 mm |
| Length | 2580 mm |
| Hybrid engine | 12 hp; Auto-starter & alternator |
| Speed | 90-130 km/h |
| Control range | up to 80 km |
| Maximum ascent and descent speed | 5 m/s |
| Flight duration | up to 9 hours |
| Maximum resistance to wind | 13,8 m/s |
| Maximum flight height | 4200 m |
| Power system | Hybrid (battery + gasoline) |
| Encryption | AES256 |

GIMBAL CAMERA WITH ARTIFICIAL INTELLIGENCE:

DEFIANT DF-30TL
DEFIANT DF-30TL
(30X zoom, IR laser >5km
Day-Full HD 1920*1080
Night – 1280*1024
IR-thermal-50 mm)
