Defiant: H40 Vale elektro, H80 JET Vipera, H160 Rayo, Magnus
Defiant UAVs and Cruise Missiles have proven themselves in the war in Ukraine as the most advanced, effective, and affordable combat unmanned systems.
The H40 Vale Electro kamikaze drone with a 22 kg warhead uses an electric motor.
The H80 JET Vipera with a 60 kg warhead is practically invulnerable to mobile air defense groups and is equipped with a jet engine, providing a flight range of up to 580 km at speeds of up to 400 km/h.

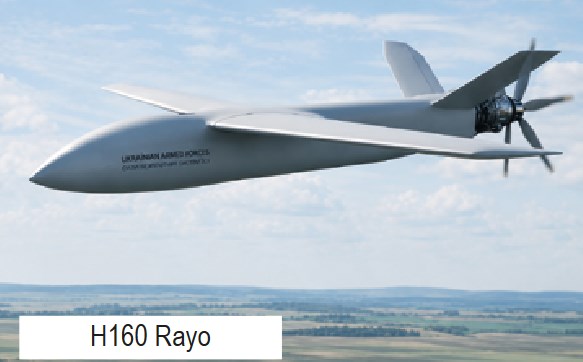

The H160 series of kamikaze drones can deliver a 100 kg warhead up to 2,000 km in the Rayo version and a 150 kg warhead up to 1,400 km in the Grevis version.

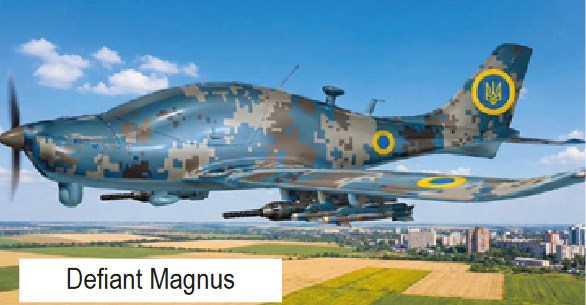

Defiant Magnus is a versatile UAV converted from a four-seat composite aircraft. Featuring excellent aerodynamics and retractable landing gear, it is capable of carrying a wide range of combat payloads — from interceptor drones and
missiles to guided aerial bombs — weighing up to 300 kg at ranges of up to 2,000 km with a cruising speed of 350 km/h.
TECHNICAL SPECIFICATIONS Defiant H40 Vale elektro:
| Length | 1,780 mm |
| Wingspan | 2,020 mm |
| Fuel capacity | - |
| Flight duration | 90 min |
| Climb rate | 25 m/s |
| Maximum flight speed with wind | 20 m/s |
| Maximum flight altitude | 3,000 m |
| Cruising speed | 180 km/h |
| Maximum range | 200 km |
| Weight | 46 kg |
| Payload | 22,5 kg |
| Engine power | - |
| Jet engine thrust | - |
| CEP | <15 m |
TECHNICAL SPECIFICATIONS Defiant H80 JET Vipera:
| Length | 4,100 mm |
| Wingspan | 1,850 mm |
| Fuel capacity | 120 liters |
| Flight duration | 100 min |
| Climb rate | 25 m/s |
| Maximum flight speed with wind | 20 m/s |
| Maximum flight altitude | 10,000 m |
| Cruising speed | 350 km/h |
| Maximum range | 580 km |
| Weight | 180 kg |
| Payload | 60 kg |
| Engine power | - |
| Jet engine thrust | 45 kg |
| CEP | <10 m |
TECHNICAL SPECIFICATIONS Defiant H160 Rayo:
| Length | 4,800 mm |
| Wingspan | 6,500 mm |
| Fuel Tank Capacity | 190 liters |
| Flight Endurance | 10 hours |
| Rate of Climb | 5 m/s |
| Maximum Wind Resistance | 20 m/s |
| Maximum Flight Altitude | 4,500 m |
| Cruise Speed | 200 km/h |
| Maximum Range | 2,000 km |
| Control Range | Starlink |
| Weight | 320 kg |
| Payload | 100 kg |
| Engine Power | 63 hp |
TECHNICAL SPECIFICATIONS Defiant Magnus:
| Length | 7,200 mm |
| Wingspan | 9,600 mm |
| Fuel capacity | 270 liters |
| Flight duration | 8 hours |
| Climb rate | 5 m/s |
| Maximum flight speed with wind | 20 m/s |
| Maximum flight altitude | 8,000 m |
| Cruising speed | 350 km/h |
| Maximum range | 2,000 km |
| Weight | 970 kg |
| Payload | 300 kg |
| Engine power | 185 hp EP918Ti |
| Jet engine thrust | - |
| CEP | <10 m |
Our defiants: Vale elektro, Vipera, Rayo, Magnus
GIMBAL CAMERA WITH ARTIFICIAL INTELLIGENCE:
DEFIANT DF-30TL
DEFIANT DF-30TL
(30X zoom, IR laser >5km
Day-Full HD 1920*1080
Night – 1280*1024
IR-thermal-50 mm)
defiant-uav.com
